For Processing Soft Dental Materials

Versamill 3 Series machines are tested and fully qualified to assure accuracy and that they arrive fully ready for production. This includes perpendicularity between rotary axes which is critical in 5-axis machining.

Versamil 3-Series machines are delivered to our Traverse City, MI facility where the undergo final assembly and rigorous testing. They are then fully qualified for quality and performance before delivery to the field.

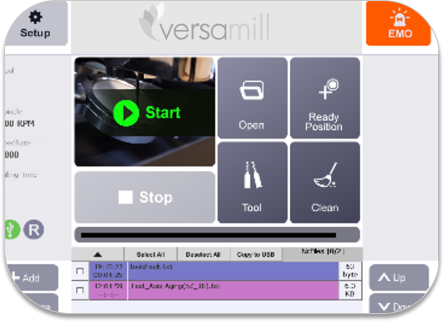

VersaLink Allows control over machines remotely through the network allowing you to monitor the milling progress, load new milling files, check tool life, material usage, milling status, and maintenance functions.

Extreme Rigidity,

Precision and Vibration-free Operation

Versamill features like granite machine bases, 3.0mm tooling, high-torque spindle, large diameter pre-loaded ball screws, heavy-duty linear guideways, zero stack tolerance rotary axes and more enable you to quickly and reliably manufacture restorations with perfect fits and razor-sharp margins- with the minimum of profit-robbing, error-prone post machining hand work.

Due to the precise positioning of our modular jigs and zero-tolerance fixturing system, A wide selection of Pre-milled abutment holders for the manufacturers of the most popular blocks and mounting systems.

The Ultimate Dry-Milling Solution

The Versamill SPEED 3-Series line of dental machining centers features the latest in high-speed dental machining technology. Designed to meet the demanding requirements of modern CAD/CAM processing, SPEED 3-Series solutions allow for the reliable, precision processing of virtually all present and future dental materials in a single, simple system.

Additionally, the modular fixturing system allows you to secure a wide range of adapters to facilitate the processing of soft dental materials In a wide variety of form factors, including pre-milled abutment blanks. C-Clamp holders are also provided.

0.5kW

60,000 rpm high-torque spindle

CLOSED-LOOP

Servo drives with absolute encoders

145kg

WEIGHT WITH GRANITE BASE

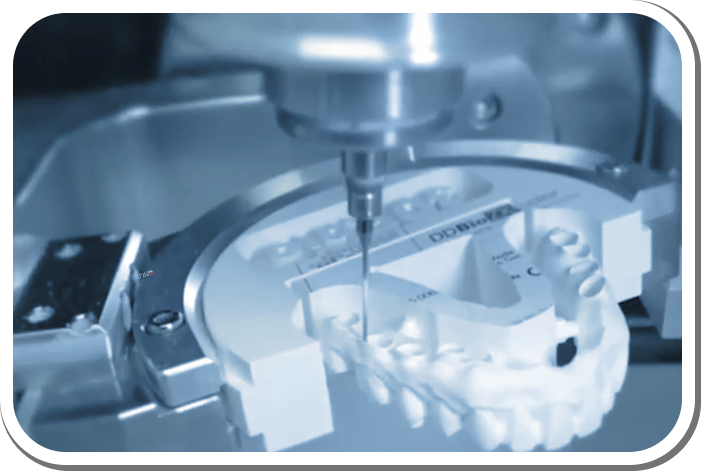

The Ultimate in Quality

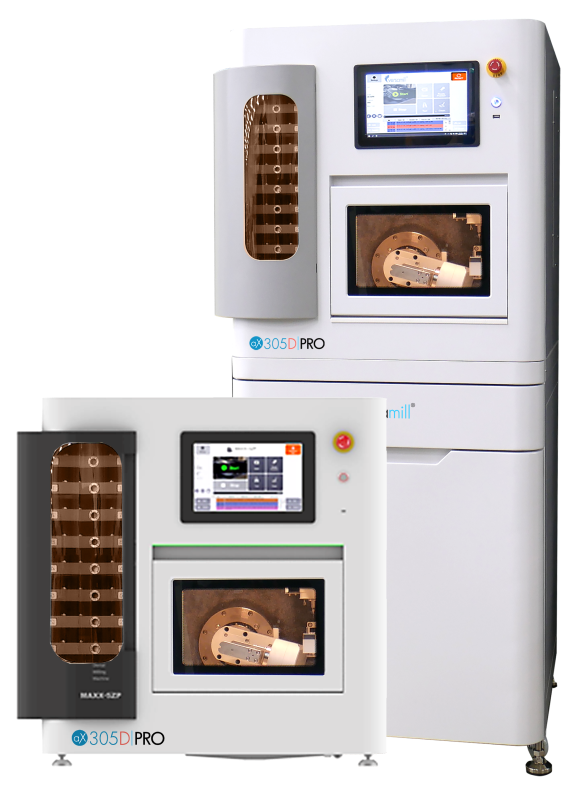

The strength and rigidity of the Versamill AX305D|PRO enables the efficient processing of all soft dental materials.

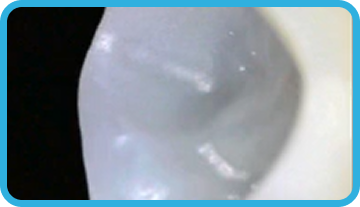

The ultimate in quality, the AX305D|PRO provides for perfect fits with clean, thin restorative margins – as little as 1 micron.

Full arch restorations can be produced in as little as 90 minutes.

The AX305D|PRO is a dry processing machine that features an 16-position tool changer with tool management system.

The extreme stability of the AX305D|PRO together with its high-torque spindle and servo motor driven drives enable the processing of virtually any prosthesis made of the vast choice of soft dental materials available today and tomorrow–all with fine detail and clean, thin restorative margins.

AX305D|PRO highlights include:

High-torque, 0.5kW spindle
3X hybrid-ceramic bearings
Standard 3mm tooling
hyperDENT Dental CAM software
Small footprint
Circular, mandrel, & C-clamp fixtures
Much more...

Features

High-torque, .5kW max spindle with ceramic hybrid bearings that help to reduce margin thickness, and extend spindle life by reducing deflection and protecting against contamination by cutting chips and coolant.

Heavy, stable, granite frame with the lowest coefficient of linear expansion. Provides the rigidity and precision to enable the production of highest possible restoration precision.

16-station ATC houses sturdy, flex-resisting 6mm diameter cutting tools with automatic tool management and breakage sensor.

The ultimate in quality, the AX305D|PRO provides for perfect fits with clean, thin restorative margins – as little as 1 micron.

Superior dynamic motion and positional accuracy thanks to large-diameter precision ball screws, anti-backlash ball nuts and linear guides with closed loop servo drives.

The strength and rigidity of the Versamill AX305D enables the efficient processing of restorations while yielding highly detailed occlusal surfaces.

C-Clamp fixture provides unlimited access to critical facial features which produces the highest levels of aesthetics–without the concern of undercuts or typical manufacturing limitations.

The strength and rigidity of t Versamill AX305D|PRO enables the efficient processing of all dental restorations while yielding the thinnest and cleanest of restorative margins. Full arch restorations can be produced in as little as 90 minutes.

FLEXIBILITY TO MEET THE DEMANDS OF TODAY AND TOMORROW

The NEW Versamill® AX305D|PRO dental milling machine provides super versatiity with its ability to mill virtually any soft dental material while providing the thinnest of margins without chipping. Process a wide variety of dental material, including: PMMA, Zirconia, PEEK, Pekkton, Composites, Hybrid-Ceramic, and More. 98mm disc with up to 30mm thickness.

CAM SOFTWARE: PROVEN & FULL-FEATURED

The Versamill AX305D|PRO is powered by your choice of GO2cam or hyperDENT CAM software from FOLLOW-ME! Technology Group. These products are selected as they incorporate efficient proven milling cycles from the industrial segment to provide maximum process stability and indication quality, including patent-protected milling strategies used for complex materials ensuring perfect surfac e quality while maximizing tool life

All Versamill machines come with Axsys’ award-winning support and unique software and machine enhancements not available from any other supplier. We leverage over 40 years of digital design and manufacturing experience–spanning a variety of industries–to provide additional functionality, unrivaled reliability and increased productivity.

Specifications

Number of axes:		5 simultaneous
Travel (x, y, z axis):	(mm)	682 x 500 x 712
B Rotational axis:	(degrees)	+-34
Processing:		Dry
Drive Mechanism:		Ballscrew
Way System:		Linear Guide
Air Requirement:	(watts)	6.5 bar
Spindle Power:	(rpm)	AC .SkW max
Spindle Speed:	3.0mm ©	60,000
ATC number of tools:		12
Axis Drive System	(mm)	Servo Motor w/Encoder
Blank disc diameter:	(mm)	98©
Machine size (W x H x D):	(mm)	620 x 1620 x 800
Weight:		100Kg
Input Power	(VAC/50-60Hz)	220 /6A Single Phase
